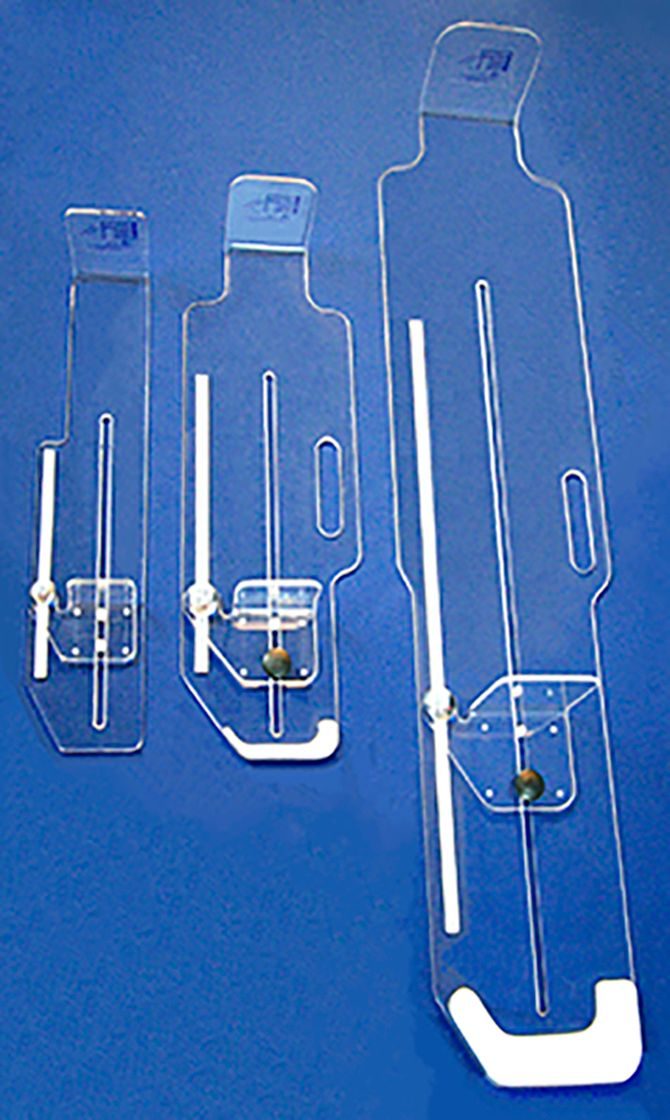

Lengthboards/Stadiometers

Our hand crafted (GOLD STANDARD)lengthboards and stadiometers are preferred for measuring infants, children and adults in hospitals and clinics Nationwide and Internationally.





Premie Lengthboard



Specially designed to measure premature infants inside incubators. Easy to read through incubator window

  • Measures from 26-50 cm
  • Stationary, 90º head piece
  • Removable, 90º sliding foot piece with magnifier
  • Calibration in 1mm increments
  • Sterilize with mild disinfectant
  • Made of clear acrylic.
  • Overall length: 24 inches

Model #: PREM LB-X -- $284.00

Availible without magnifier, specify on your order No Mag

Upon request we can add a reinforcement piece to this model, let us know and add $5.00 each.

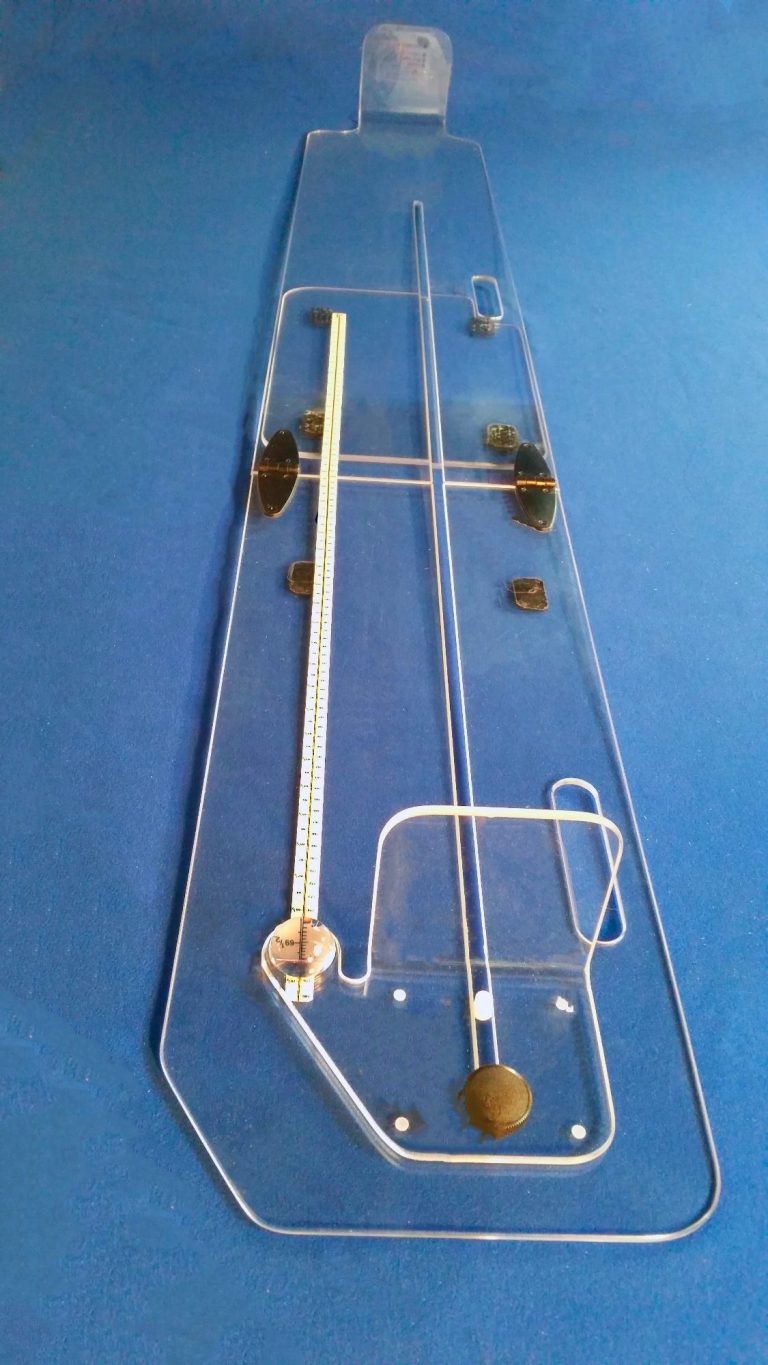

PANDA Lengthboard

  • Specially designed to fit Panda Warmer
  • Measures from 20 to 54.4cm.  Overall length 26"/ widest width 9"
  • Stationary, 90º head piece
  • Removable, 90º sliding foot piece with magnifier
  • Calibration in 1mm increments
  • Sterilize with mild disinfectant
  • Made of clear acrylic.



Model #: PANDA LB 20-54.4-X-- $432.00

Availible without Locking Knob and Magnifier, Please specify No Knob or No Mag when ordering

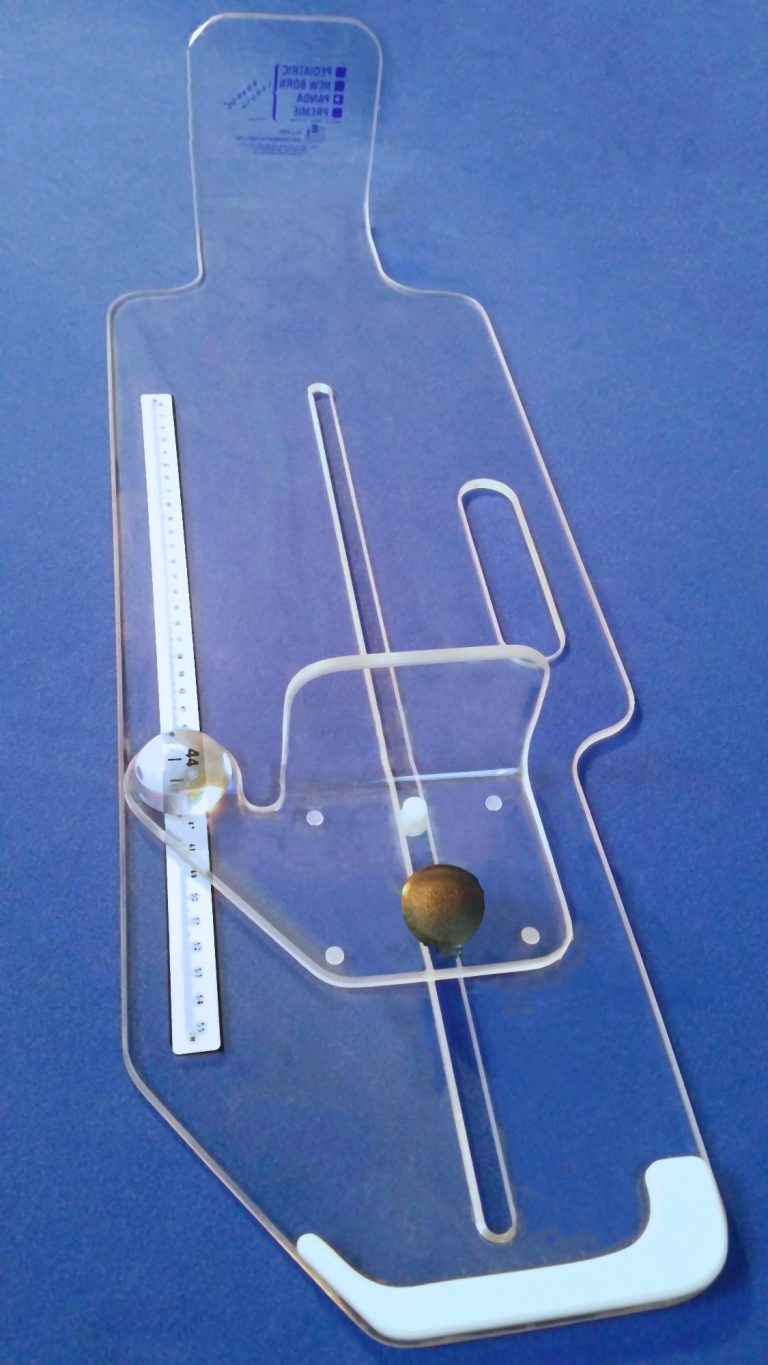

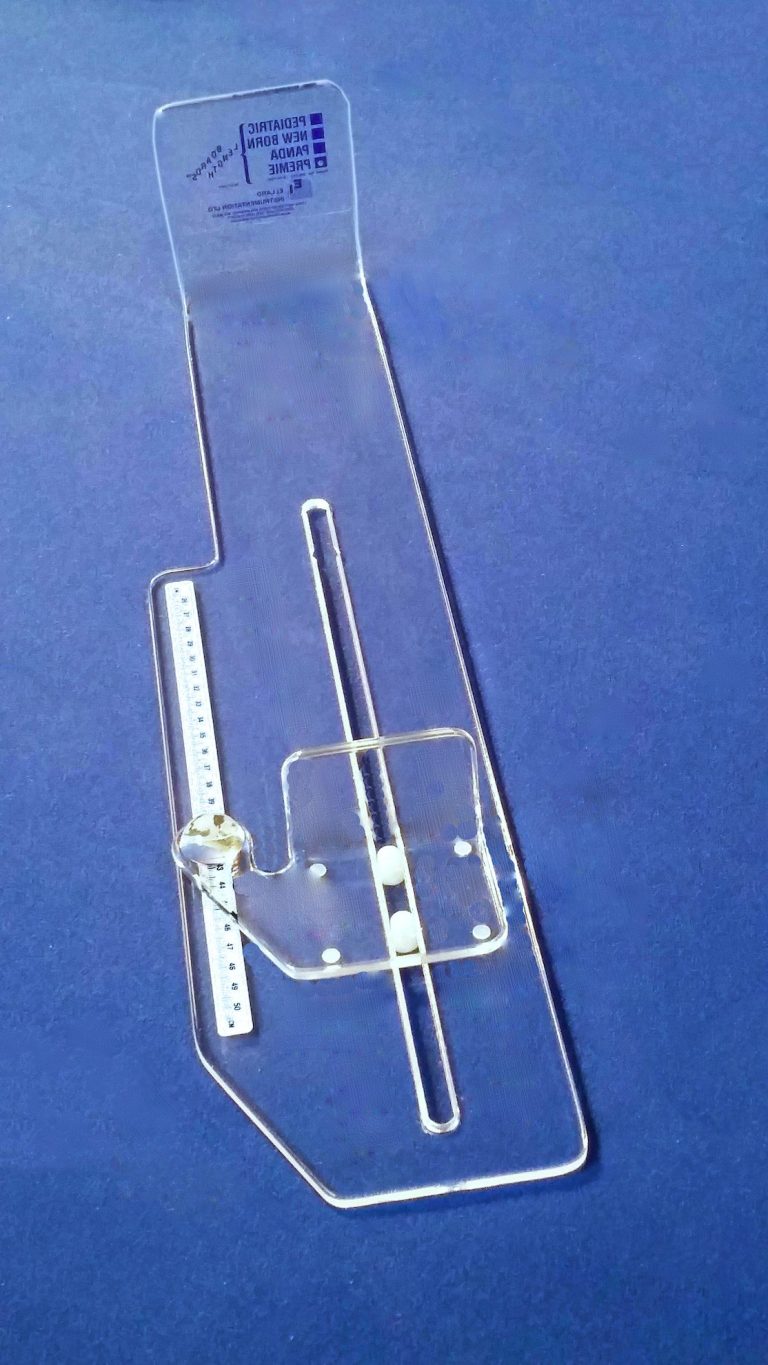

Newborn Lengthboard



Ideal for use in hospital nurseries for measuring newborn infants. Large enough to measure all neonates, but small enough to fit easily on nursery table.

  • Measures from 35-70 cm and 14-27 inches.
  • Stationary, 90º angle head piece
  • Removable, sliding, 90º angle foot piece with magnifier.
  • Easy to read measuring tape in English and metric
  • Calibration in 1/8 inch and 1 mm increments.
  • Meets CHDP specifications for state of California.
  • Built-in handle for easy transport
  • Made of clear acrylic reinforced with 1/4" white ABS.
  • Overall length: 33 inches.

Model #: NWB LB 35-70-X -- $376.00

Model #: M-NWB LB 35-70-X (Metric Only)

Availible without magnifier, specify on your order No Mag

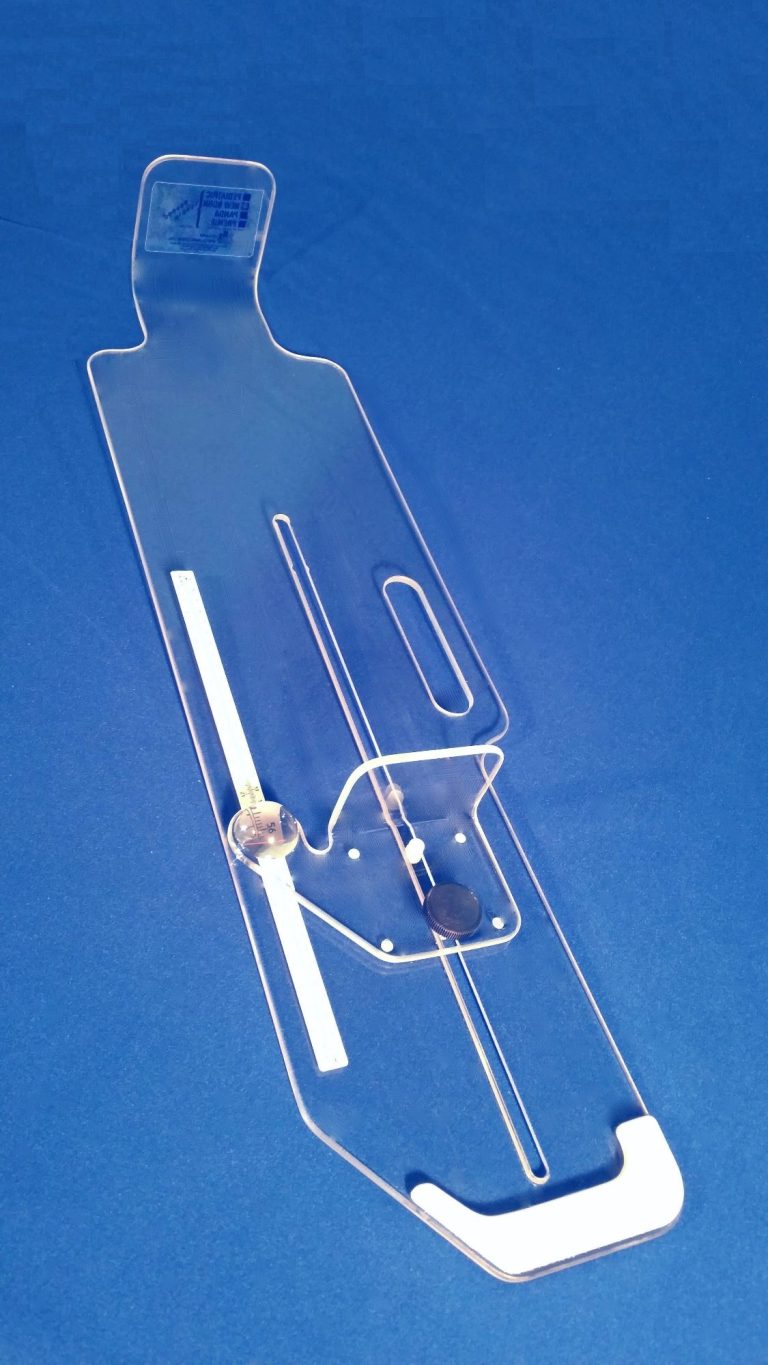

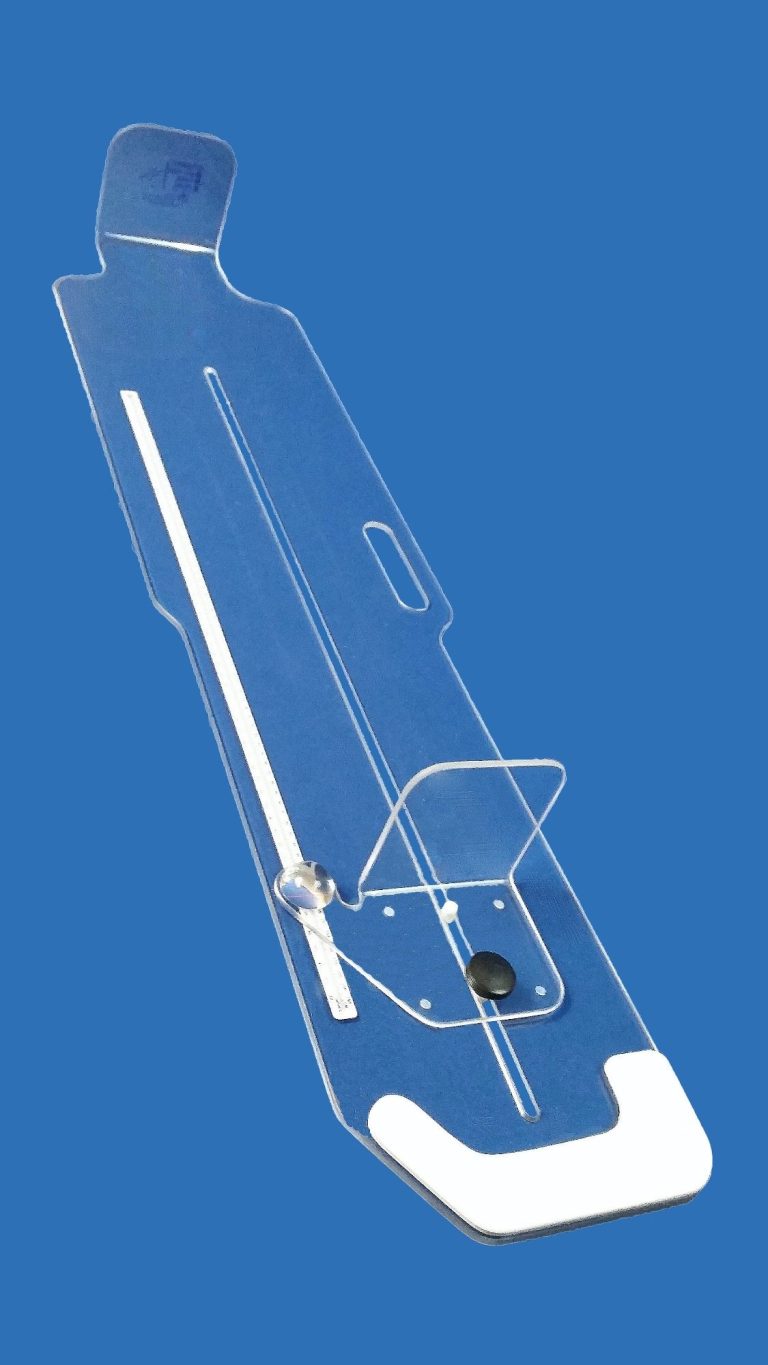

Pediatric Stadiometer

Useful in a variety of clinical settings. Designed for use by doctors, nurses and nutritionists in pediatric practice. Measures recumbent length of all children up to 2 years of age and many to 3 years.

  • Measures from 35-107 cm and 14-42 inches.
  • Stationary, 90º angle head piece
  • Removable, sliding, 90º angle foot piece with magnifier.
  • Easy to read measuring tape in English and metric
  • Calibration in 1/8 inch and 1 mm increments.
  • Meets CHDP specification for state of California
  • Made of clear acrylic reinforced with 1/4" white ABS.
  • Weight: 6 pounds.
  • Built-in handle for easy transport
  • Overall length: 49 inches

Model #: PED LB 35-107-X -- $529.00

Model #: M-PED LB 35-107-X (Metric Only)





REC LB-6X

  • REC LB-6X measures from 89-183cm and 35-72 inches
  • Folds to 45" with built-in handles for easy transport
  • Made of clear Acrylic
  • Overall length 79"
  • Removable Sliding 90 angle with magnifier and Locking Knob

Model #: REC LB-6X -- $746.00

Stadiometer Stature measuring board for children and adults.

  • Measures from 89-215 cm and 35-84 inches.
  • Removable, sliding, 90º angle head piece with magnifier.
  • Easy to read measuring tape in English and metric
  • Vertical graduations for easy viewing
  • Calibration in 1/8 inch and 1 mm increments.
  • Installs permanently to wall with anchors and screws. (included).
  • Meets CHDP specifications for state of California.
  • Made of clear acrylic.
  • Weight: 9 pounds.
  • Folds to 57 inches with built-in handle for easy transport
  • Overall length: 92 inches

Model #: STAT 7X -- $771.00

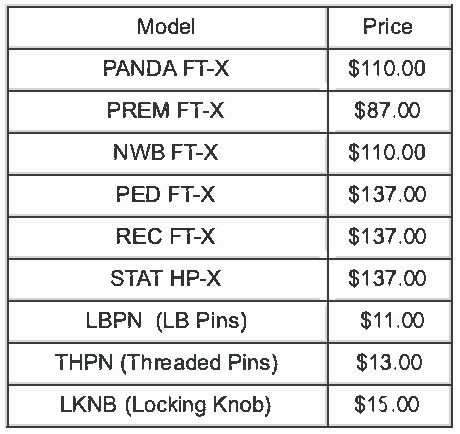

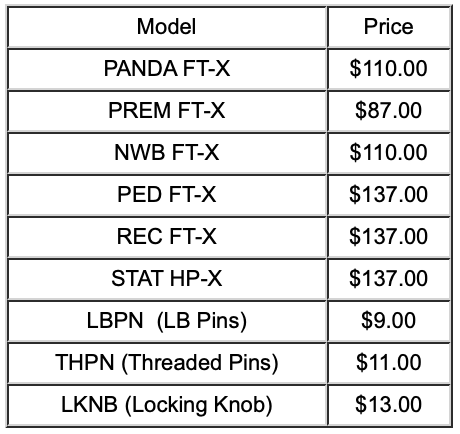

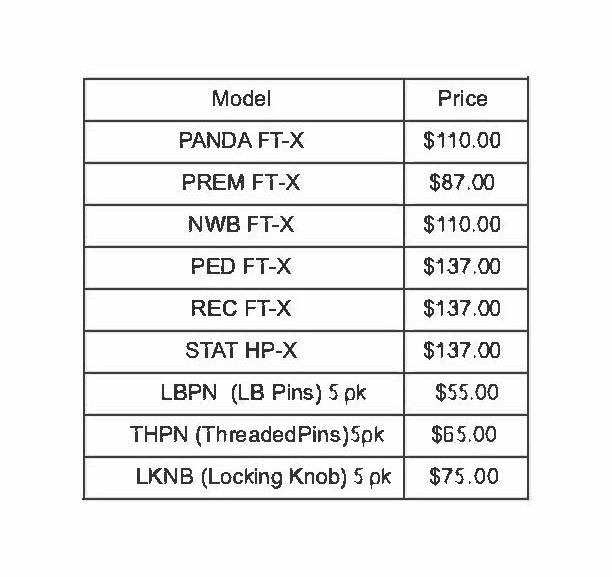

Lengthboard/Stadiometer Parts and Accessories

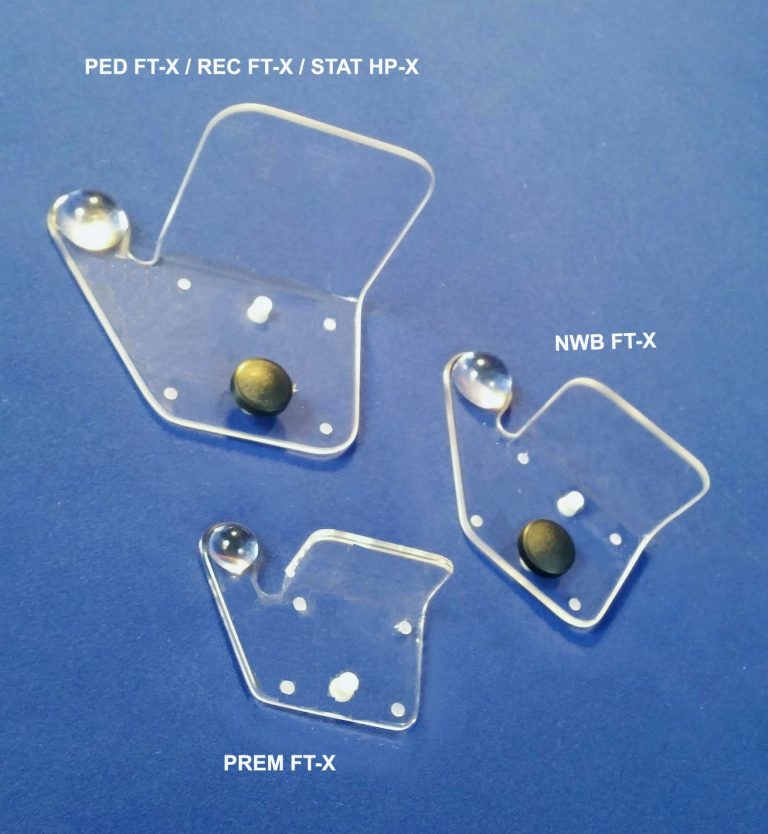

Foot Pieces

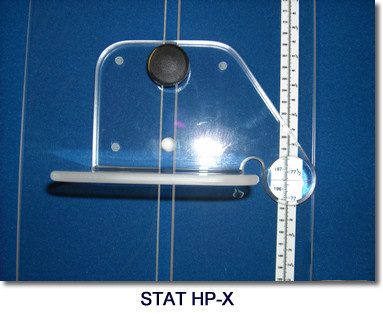

Sliding Foot Piece with magnifier and preset pins. Easily attaches to LengthBoard. Maintains accurate calibration

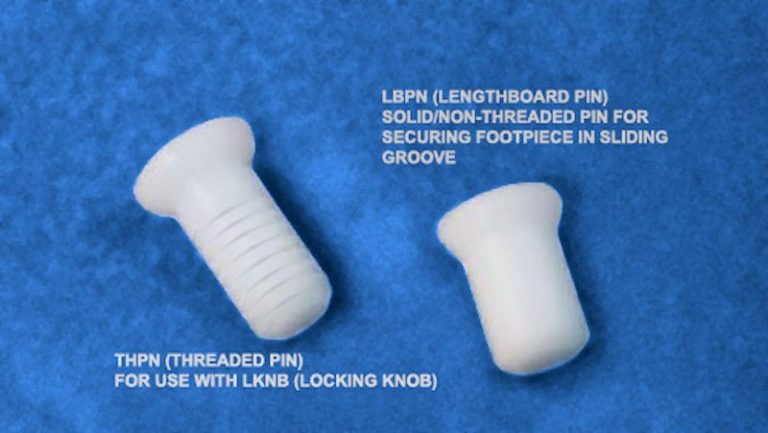

THPN & LKNB

THPN & LBPN
